Ewifoam Unterlage Vinclic Classic Smart

Item number: EWI_188000000000001509
€5.90 / m²
Regular Price: €7.49
Incl. VAT
Incl. VAT
= / PU
Packageprice: €59.00

Article is on stock and dispatched within 24 h (Delivery within ca. 2-4 working days) - "Choose your own delivery date" available.

Free shipment for flooring of 25m² within Germany
Suitable accessories


Manufacturer: Ewifoam Vinclic Classic Smart Underlay Suitable for laying on underfloor heating: yes Thermal resistance: 0.04 m² K/W Thickness: 1.5 mm Length: 8.48 m Width: 118 cm Corresponds to: 10 m²

More Information

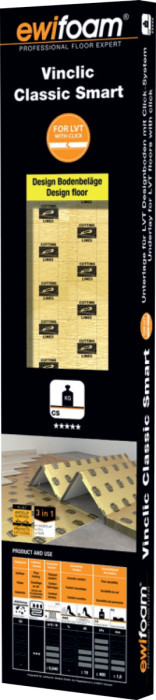

Ewifoam underlay Vinclic Classic Smart - the comfort underlay for design floors with click system

The Ewifoam brand stands for professional acoustic insulation underlays of the highest quality. Thanks to many years of experience in this field, solutions can be offered that increase comfort, both acoustically and thermally, and the durability of the floor covering. The underlay Vinclic Classic Smart with non-slip surface is specially designed for acoustic insulation of floating LVT design floors (LVT= Luxury Vinyl Tiles) with Click System. Among other things, it can be installed in damp rooms as well as above floor heating systems, since a vapour barrier is integrated. Thanks to its high compressive stress, it is also well suited for heavily frequented rooms. The overlapping edge and the adhesive strips make the laying of this underlay particularly easy.

Why do you need acoustic insulation?

Although design floors are quieter than laminate or parquet flooring, you cannot move on them without making a sound. This means that there is always a certain amount of walking sound and therefore also footfall sound. If they are sensitive to noise, or if the floor is to be laid in a sensitive environment, acoustic insulation is therefore a good idea.

How is the Ewifoam Vinclic Classic Smart underlay laid?

Before you start laying the flooring, you must ensure that the subfloor is dry, firm, free of cracks, level, resistant to tension and compression and clean. With a mineral substrate, the residual moisture must not be too high either. In the case of a cement or calcium sulphate screed without underfloor heating, it may be 2.0%; if underfloor heating is present, the value is 1.8%. Roll out the underlay on the floor. The laminated side comes to the top. Let the individual tracks butt against each other. Now remove the protective film from the self-adhesive strips and stick the overlap edge with the self-adhesive strips. You can then start laying the floor covering. Observe the installation instructions of the manufacturer.

For which applications is this underlay suitable?
You can use this underlay for
  • Vinyl flooring with multilayer carrier board and click connection
  • Vinyl floors made of solid vinyl with click connection
  • Design shelves with multilayer carrier board and click connection
  • design floors made of solid vinyl with click connection
  • Master Nadura floors
  • installation in a wet room, as a moisture barrier is integrated
  • the installation over a water-bearing floor heating system
  • the installation on a mineral subfloor
Overview of the properties of Ewifoam Vinclic Classic Smart underlay
  • Brand: Ewifoam
  • Series: Vinclic Classic Smart
  • Material: PET and modified XPS (XPS = extruded polystyrene foam)
  • Length: 8.500 mm
  • Width: 1.180 mm
  • Thickness: 1,5 mm
  • Folding panel
  • Weight: 0,252 kg/m²
  • Packaging unit: 10 m²
  • Impact sound insulation: up to 19 dB
  • Compressive strength: 400 kPa
  • Compensation of unevenness up to 0,5mm
  • Fire behaviour: Efl
  • suitable for installation over underfloor heating systems
  • Thermal resistance: 0.04 m²K/W
  • with non-slip surface
Brand Ewifoam
Manufacturer series name Vinclic
Product group Vinclic
Installation Floating installation
Self-adhesive No
Underfloor heating Yes
Humidity resisstant No
Height (mm) 1,50
Thickness (mm) 1,50
Width (mm) 1.180,00
Length (mm) 8.480,00
Quality A1 sorting
Floor type suitability Vinyl floor for clicking, Design floor for clicking
Suitability for underfloor heating ★★★✩✩
Reflected walking sound (RWS) -
Impact sound insulation dB 19
Impact sound insulation ★★★★✩
Heat transmission resistance < 0.04 m² K/W
Heat insulation ✩✩✩✩✩
Humidity (steam) barrier ★★★★★
Bump compensation ★✩✩✩✩
Manufacturer article number Ewifoam 188000000000001509
Manufacturer EAN Ewifoam 4033805019836
Manufacturer catalogue Download
Manufacturers fact sheet Download
