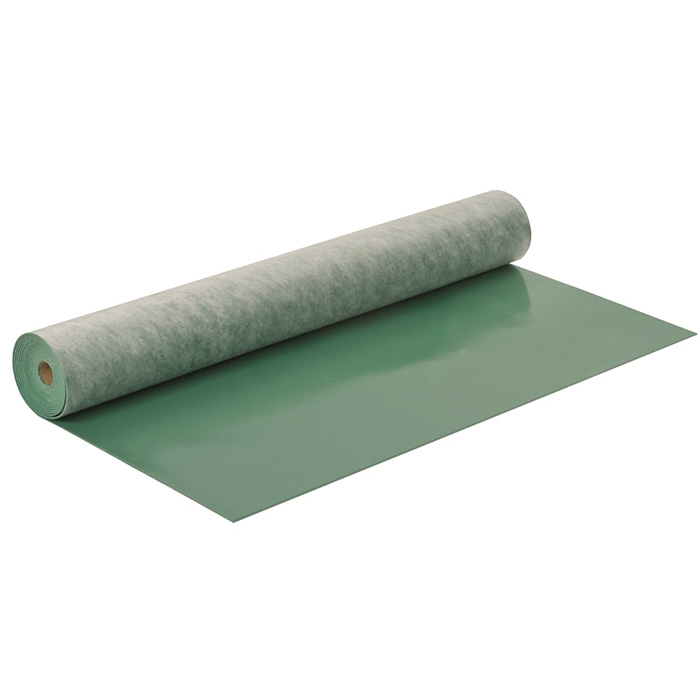

Acoustic insulation carpet pad Wineo soundPROTECT

Item number: WIN_UN_10020222
€6.90 / m²
Regular Price: €7.90
Incl. VAT
= / PU
Packageprice: €55.20

Article is on stock and dispatched within 24 h (Delivery within ca. 2-4 working days) - "Choose your own delivery date" available.

Free shipment for flooring of 25m² within Germany


Manufacturer: Wineo insulation mat soundPROTECT Series: soundPROTECT Thickness: 2mm Width: 100cm Length: 8m Piece in package: 1 this corresponds to 8 m²

More Information
Acoustic insulating underlay Wineo soundPROTECT

The acoustic insulating underlay Wineo soundPROTECT was developed specifically for installation under parquet and laminate floor


This high-quality, permanently elastic acoustic insulation underlay, which is supplied as easy to install roll goods, consists of 90% natural raw materials.

How is this acoustic insulation underlay constructed?

The heavy layer of polyurethane is located on a PET carrier film. The back is laminated with a high-quality white fleece. In the heavy layer, mineral fillers are bonded together by polyurethane binders.

Where can this acoustic insulation underlay be used?

The soundProtect acoustic insulation underlay from Wineo is used by
  • with a separate vapour barrier on mineral substrates
  • without vapour barrier on non-mineral surfaces
  • on water bearing underfloor heating systems
  • floating laminate floor with click connection
  • floating parquet with click connection
  • Modernizations
  • New buildings
Why do you need an acoustic insulation underlay?
If a hard floor covering is laid in a floating manner, together with the subfloor and the layer of air in between, it forms a resonance chamber for the impact sound, which amplifies it. Impact sound is the proportion of the sound generated in a room that reaches other rooms via the floor, ceiling and walls. The sound produced in space by movements is called walking sound. Both walking and impact sound are reduced by an acoustic underlay, also called impact sound insulation.
Environment and health protection

This acoustic underlay does not contain heavy metals, plasticizers or solvents. No formaldehyde, asbestos or halogens are used in their manufacture. It complies with the VOC guidelines for classification A+ and has been awarded the "Blue Angel" as a low-emission product. (VOC = volatile organic compounds) For the production of this acoustic underlay only sustainable raw materials are used, which do not compete with food production. No special industrial safety measures are required during their processing. At the end of its service life, this acoustic underlay can be disposed of at a landfill site or in a waste incineration plant. So you can buy this product with a clear conscience.

Overview of the properties of the Wineo soundPROTECT acoustic insulation underlay
  • Brand: Wineo
  • Series: soundPROTECT
  • Length: 8,00 m
  • Width: 1,00 m
  • One roll contains 8 m²
  • Weight: 1,7 kg/m²
  • Compressive strength: up to 22 t/m²
  • Resistance to creep deformation under pressure: approximately 44 kPa
  • Resistance to dynamic loads: more than 100,000 cycles
  • Impact stress: approximately 750 mm (measured under 7 mm laminate)
  • Compensation of unevenness: up to 1.12 mm
  • Walking noise reduction: 28 % (measured under 7 mm EPLF laminate)
  • Impact sound reduction: 19 dB (measured under 7 mm EPLF standard laminate)
  • suitable for installation on floor heating systems
  • Thermal resistance: 0.01 m²K/W
  • permanently elastic
  • 90 % made from natural raw materials
Brand Wineo
Manufacturer series name soundPROTECT
Self-adhesive No
Underfloor heating Yes
Humidity resisstant No
Height (mm) 2,00
Thickness (mm) 2,00
Width (mm) 1.000,00
Length (mm) 8.000,00
Quality A1 sorting
Floor type suitability Laminate, Parquet
Manufacturer article number Wineo UPU200
Manufacturer EAN Wineo 4017268997337
Manufacturer catalogue Download
Manufacturers fact sheet Download
