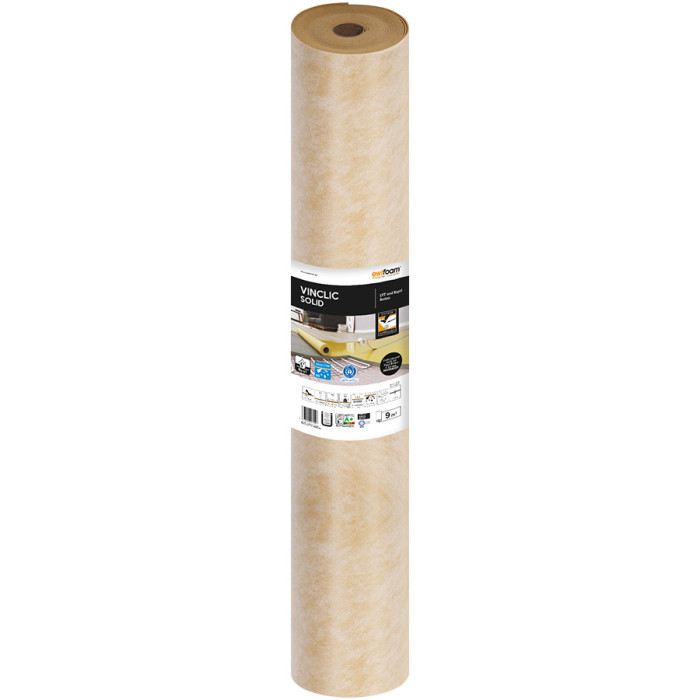

Ewifoam carpet pad Vinclic Solid comfort and impact sound insulation carpet pad

Item number: EWI_188000000000001942
No longer available
Not available
Suitable accessories
Accessories

Information

Ewifoam Vinclic® Solid comfort and impact sound insulation carpet pad with smooth surface for floating LVT design floorings with click system for use in heavily frequented rooms. With vapor barrier. Made from 90% natural materials. Chair roll test passed even with Rigid floor smaller than 4.5 mm height. Suitable for installation on underfloor heating: Yes Uneven floor (mm) PC: PC 1 / 0.60 Compressive strength Compressive strength (kPa) CS: CS3 / up to 500 Dynamic compressive strength (cycles) DL : DL3 / 500 000 Impact resistance (mm) RLB: RLB2 / up to 1000 Suitability floor tickness (m² K/W): up to 0.004 Thermal insulation (m² K/W): - Impact sound reduction (dB) IS: up to 12 Walking sound emission (%) RWS: - Humidity (mm) SD : 75 Material: PUM + PET Delivery form : Roll Thickness: 1.10 mm Length: 9.00 m Width: 1.00 m equals: 9.00 m²
More Information
The Ewifoam carpet pad Vinclic Solid: comfort and impact sound insulation for heavily frequented rooms
The Ewifoam carpet pad Vinclic Solid is a high-quality impact sound insulation carpet pad for floating LVT design floorings with click system. The smooth surface is particularly suitable for heavily frequented rooms, such as offices or commercial properties. The carpet pad consists of 90% natural materials and has an integrated vapor barrier that prevents moisture from below
  • Impact sound reduction: Ewifoam's Vinclic Solid carpet pad reduces impact sound by up to 12dB.
  • Suitable for installation over underfloor heating: The carpet pad is suitable for installation over underfloor heating and ensures optimal heat conduction.
  • Unevenness compensation (mm) PC: The Vinclic Solid carpet pad compensates for unevenness up to 0.6 mm.
  • Compressive strength Compression (kPa) CS: The Ewifoam carpet pad is extremely resistant to compression and can be compressed up to 500 kPa.
  • Dynamic compressive strength (cycles) DL: The dynamic compressive strength of the carpet pad is DL3/500,000 cycles.
  • Impact resistance (mm) RLB: The carpet pad is impact resistant and can withstand loads of up to 1000 mm.
  • Suitability underfloor heating (m² K/W): The thermal resistance of 0.005 m²K/W is suitable for optimal heat conduction on underfloor heating systems.
  • Thermal insulation (m² K/W): The Ewifoam carpet pad Vinclic Solid has no specific thermal insulation.
  • Walking sound emission (%) RWS: The walking sound emission is not specified.
  • Moisture (mm) SD: The carpet pad has a moisture protection of 75 mm.
  • Material: The carpet pad is made of PUM + PET.
  • Delivery form: The carpet pad is delivered as a roll, which is 9 m long and 1 m wide. This corresponds to an area of 9 m².
  • Thickness: Ewifoam carpet pad Vinclic Solid has a thickness of 1.10 mm.
  • Length: The roll has a length of 9.00 m.
  • Width: The roll has a width of 1.00 m.
High quality and sustainability

Ewifoam places great emphasis on high quality and sustainability in the manufacture of its products. Vinclic Solid carpet pad is made of 90% natural materials and is fully recyclable. The integrated vapor barrier prevents moisture from below, which helps prevent mold and other damage. By reducing impact sound by up to 12dB, the carpet pad provides a pleasant noise reduction and improved indoor climate. Installation on underfloor heating is possible and the carpet pad provides optimal heat conduction. Ewifoam carpet pad Vinclic Solid is an excellent choice for high traffic rooms where comfort and impact sound insulation are important.

Brand Ewifoam
Manufacturer series name Vinclic Solid
Installation Floating installation
Self-adhesive No
Underfloor heating Yes
Humidity resisstant Yes
Height (mm) 1,10
Width (mm) 1.000,00
Length (mm) 9.000,00
Quality A1 sorting
Floor type suitability Vinyl floor for clicking, Design floor for clicking
Suitability for underfloor heating ★★★★★
Reflected walking sound (RWS) 62 Sone
Impact sound insulation dB 12
Heat transmission resistance 0.005 m² K/W
Heat insulation ✩✩✩✩✩
Bump compensation ★✩✩✩✩
Eco-label / Certification

Blauer Engel

Manufacturer article number Ewifoam 188000000000001942
Manufacturer EAN Ewifoam 4033805025097
Manufacturer catalogue Download
Manufacturers fact sheet Download
Deliverty time
2-3 Tage
