Wineo Underlay silentPREMIUM - self-adhesive for glue-down vinyl

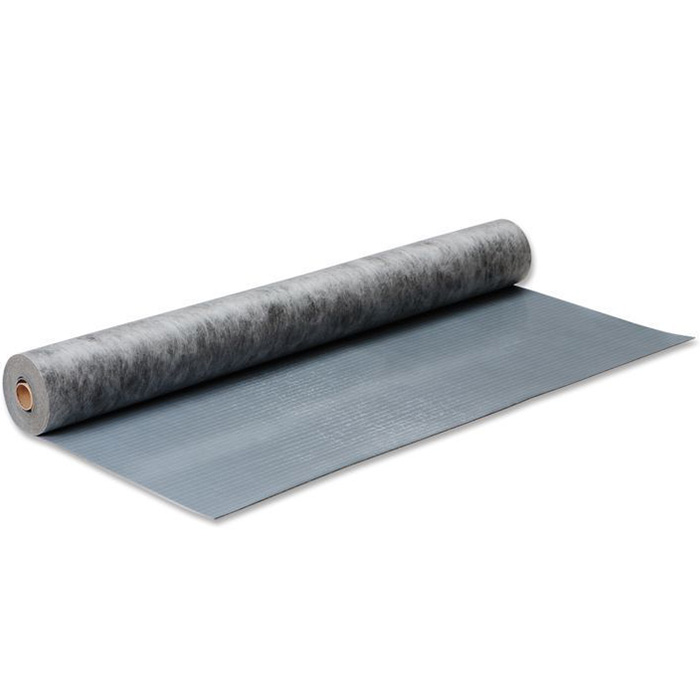

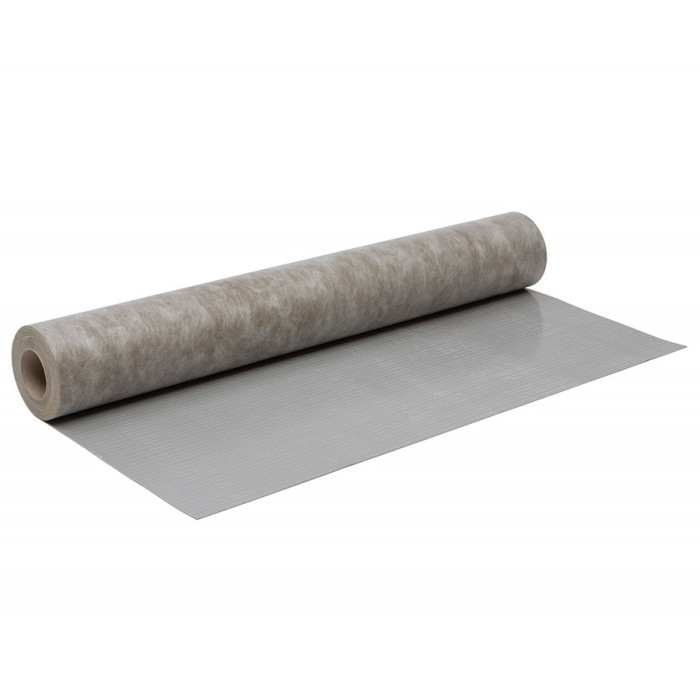

Wineo Silent Premium insulating mat for floor coverings that are glued

This patented insulation mat, consisting of 90 % natural raw materials, is installed floating under glued floor coverings. It provides lasting high-quality walking and impact sound insulation. The insulation underlay was designed for installation under Wineo Design floor coverings. When using with other floor coverings, please contact the manufacturer in advance

How is the Wineo insulating mat silent Premium constructed?

This permanently elastic insulation mat consists of mineral fillers and polyurethane binders. A dimensionally stable self-adhesive layer with removable protective film is applied to one side of a transparent PET carrier film. On the other side there is a non-ageing heavy layer of polyurethane and a white fleece back lamination.

Health and ecology

This insulating underlay, which has been awarded the "Blue Angel" as a low-emission underlay, is manufactured without the use of plasticizers, solvents, chlorine, halogens, asbestos, heavy metals or formaldehyde. It therefore meets the VOC guidelines for interior emissions of level A+. Natural, renewable raw materials are used for production, which do not compete with food cultivation.

Where is this insulation mat used?

• under full vinyl floors with click connection
• under full vinyl floors without click connection
• under design shelves with click connection
• under design floors without click connection
• under master Nadura Böden
• on mineral substrates
• on wooden backgrounds

This must be observed when laying this insulation underlay

For installation, the room temperature should be at least 18 °C and the floor temperature should be between 15 °C and 25 °C. The relative humidity should be less than 65 %. The insulation underlay should have 24 time to acclimatize in the room. When laid on screed, the residual moisture must not exceed the following values: for unheated cement screed 2.0 CM %, for heated cement screed 1.8 CM %, for unheated calcium sulphate screed 0.5 CM %, for heated calcium sulphate screed 0.3 CM %. (The CM stands for calcium carbide method)

The properties of the Wineo Silent Premium insulating mat at a glance

• Length: 6,5 m
• Width: 1,0 m
• Thickness: 1,8 mm
• one roll contains 6.5 m² of insulation mat
• Weight of the insulation mat: 2.6 kg/m²
• Service class for private use: NK 23 (heavy load possible)
• Service class for commercial use: NK 32 (for normal load)
• Reduction of walking noise: up to 6
• Impact sound reduction: up to 15 dB
• suitable for installation on hot water underfloor heating systems
• Thermal resistance: 0.01 m²K/W
• Residual impression: maximum 0,2 mm
• Compressive stress: greater than 45 t/m²
• permanent compressive stress: greater than 55 kPa
• dynamic stress: more than 100,000 cycles
• Impact load: approx. 750 mm
• punctual compensation of unevenness: up to 0.55 mm
• only minimal preparation of the substrate required
• Installation on existing floor coverings possible
• Corrections can still be made at the beginning of the installation
• can be walked on immediately after laying
• no additional adhesive required
• clean and fast processing
• resistant to plasticizers
• can be easily removed without leaving any residue
